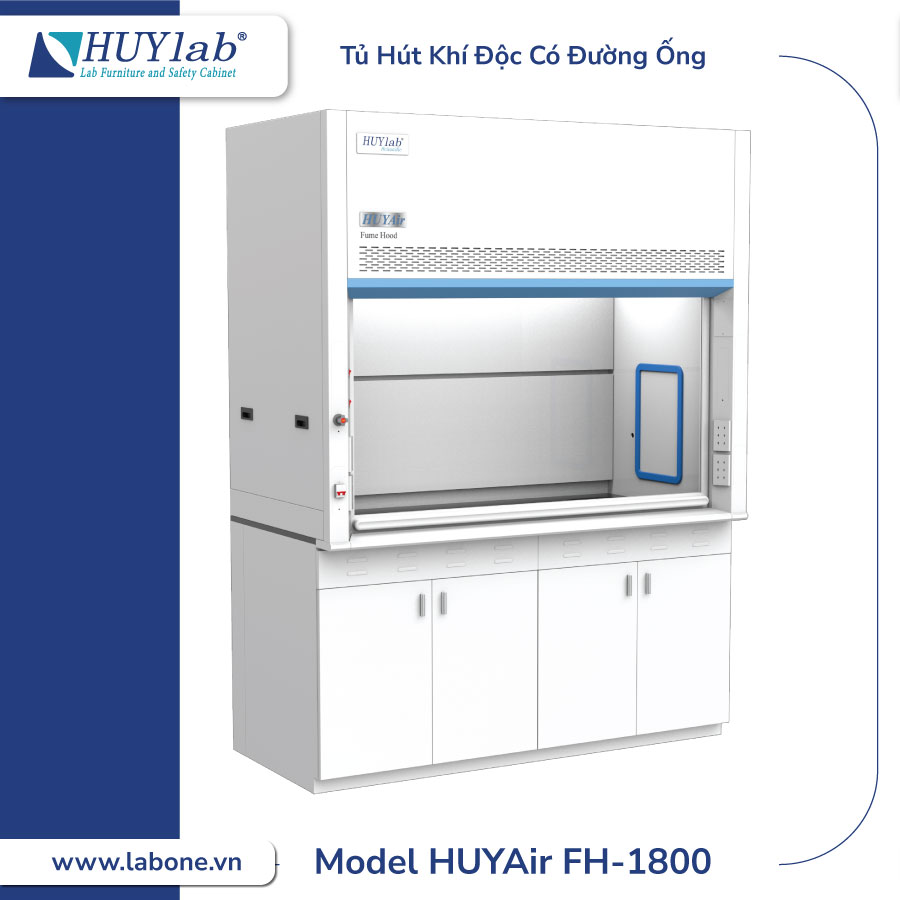

Model HUYAir FH-1800 | Ducted Fume Hood

  • Motor: Fume hood M250-1P,1.5Kw,1500rpm 220V, HSX: QUIMIPOL.
  • Standard compliance: ASHREA 110.
  • Size standard: 1800mm.
  • Warranty: 3 years.

FEATURES

  • Fume Hood – HUYAir FH is used to control and handle exhaust gases that cause pollution in industrial and chemical applications.
  • Cabinet structure: inner chamber made of PP and PVDF plastic, with an exterior of electro-galvanized steel coated with a chemical, UV, and microbial-resistant powder, and easy to clean.
  • UV-resistant tempered glass door, sliding with counterweight.
  • Work surface made of phenolic resin, PP plastic, or epoxy resin, durable and chemical-resistant.
  • Air inside the working chamber meets ISO 14644-1 standards.
  • Equipped with Quimipol motor from Spain, offering energy savings, noise reduction, and reduced longterm operational costs.
Model HUYAir FH – 1800
Controller Power switch
Inflow velocity 0,51 m/s
Light intensity >750 lux
Noise <65 dB
Maximum sash opening height 750 mm
Motor Fume hood M250-1P,1.5Kw,1500rpm 220V, HSX: QUIMIPOL
External dimensions (W x D x H) 1800 x 910 x 1500 mm
Internal dimensions (W x D x H) 1600 x 660 x 1070 mm
External dimensions including cabinet legs (W x D x H) 1800 x 910 x 2400 mm
Cabinet weight 240 kg
Power 2000W
Voltage – Frequenciens 200 – 240V or 380V, 50/60 Hz
Warranty 3 years
Support stand Support Stand with caster wheels | Height 800mm for model HUYAir FH
Support Stand with cabinets | Height 800mm for model HUYAir Bio2-Eco
Power accessories Power outlet
Vans accessories Gas vans | Gas (such as N2) | Vacuum vans
Water vans
Sink accessories Mini sink
Filter accessories System Wet Scrubber | Model : HUYAir WS

The cabinet is designed with upper front air intake bypass slots and baffles that change the direction of airflow, ensuring efficient air circulation whether the cabinet door is closed or open at a higher position. The airflow around the cabinet is drawn in through the front door, and the intake air is divided into two directions:

  • Direction 1: Air from the outside is drawn up through the duct and expelled to the outside.
  • Direction 2: Air is drawn through the slots, and the airflow behind the partition goes up through the duct for exhaust.
