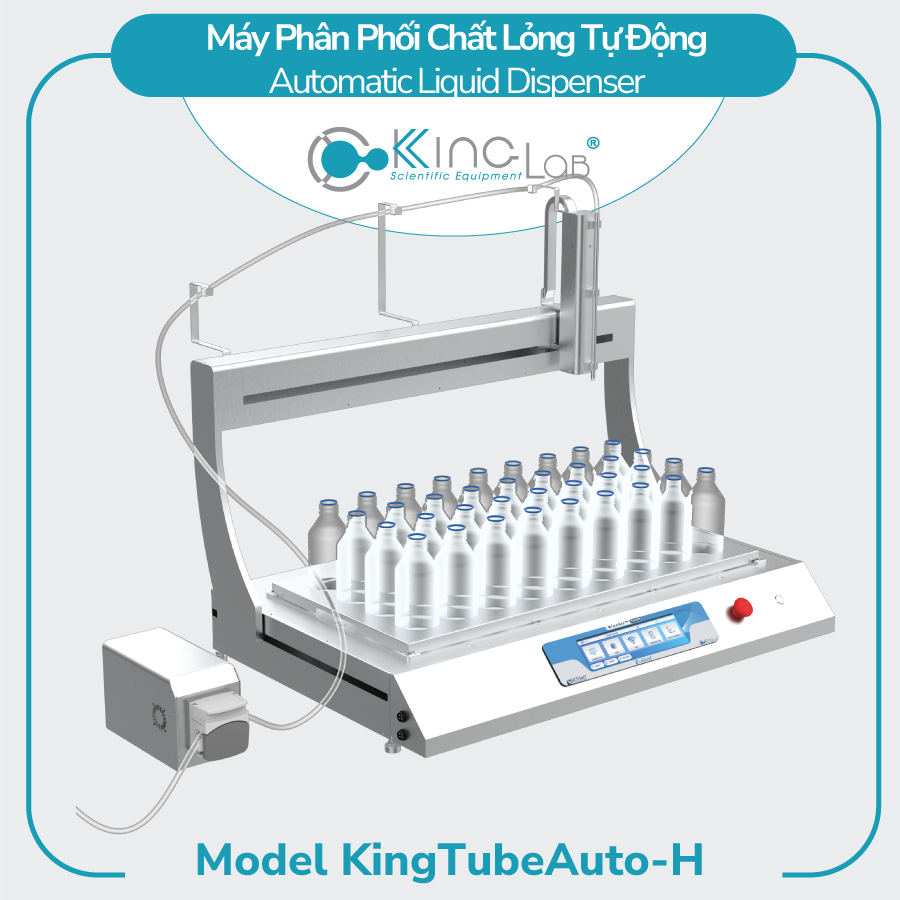

• KingTubeAuto – H is an automated liquid dispensing solution for laboratories.
• It distributes samples based on weight and volume in a simple yet efficient manner.
• The process is fast, precise, and results in aseptic samples that are easy to monitor. It’s a valuable tool for laboratory settings.
| Model | KingTubeAuto-H |
| Dispensed volume | 100 μL to 100 L |
| Pump | Connecting to a separate pump head. |
| The accuracy with a 3.2mm diameter tube | 10 mL: >98% – 20 mL: >99% – 225 mL: >99.5% |
| The inside diameter of the tube | 1.6mm, 2.4mm, 3.2mm |
| The wall thickness of the tube | 1.6mm |
| Flow rates | 1.5 mL/mn to 198 mL/ min |
| The dispensing time for a 3mL tube | 32 tube/min |
| The dispensing time for a 10mL tube | 12 tube/min |
| The number of trays for 96 tubes (10mL-20mL). | 4 |
| The number of trays for 96 tubes (2mL-5mL). | 8 |
| The number of trays for 96-well plates | 16 |
| The axis | X:515, Y:355, Zmax:145, Zmin:50 |
| Speed | 10-400rpm |
| The pipes are supplied by the company | Longer Pump |
| External dimensions (LxWxH) | L700 x W660 x H708 mm |
| Weight | 30kg |
| Input voltage | 220-240 V~ 50-60 Hz |
| Power | 80W |
| Control screen | 4.3-inch touchscreen display |
| Drip tray | ✔ |
| Material stainless steel | ✔ |
| Made in Vietnam | ✔ |
| 3-year warranty | ✔ |
| Products | Order Code | Description |
| Trays for 96 tubes (2mL-5mL) | KingRack 10 | Stainless steel tray for 2mL – 5mL tubes |
| Trays for 96 tubes (10mL-20mL) | KingRack 2 | Stainless steel tray for 10mL – 20mL tubes |
| Trays for 96-well plates | DeepWell96 | Stainless steel tray for 96-well plates |
| Independent stand for ready-to-used bags | KingStand | Independent stand for 2 eady-to-used bags |
| Trocar | KingTrocar | Trocar for ready-to-used bags |
| Tubings (ø 1.6 mm) | KingTubing 1.6 | The inner diameter of the tube is ø 1.6 mm with a wall thickness of 1.6mm |
| Tubings (ø 2.4 mm) | KingTubing 2.4 | The inner diameter of the tube is ø 2.4 mm with a wall thickness of 1.6mm |
| Tubings (ø 3.2 mm) | KingTubing 3.2 | The inner diameter of the tube is ø 3.2 mm with a wall thickness of 1.6mm |
| Nozzles (ø 1.6, 2.4, 3.2 mm) | KingNozzle-S | Material: Inox 304, suitable for various tubings sizes |
| TubeWeight (ø 1.6, 2.4, 3.2 mm) | KingTubeWeight-M | Material: Inox 304, suitable for various tubings sizes |
