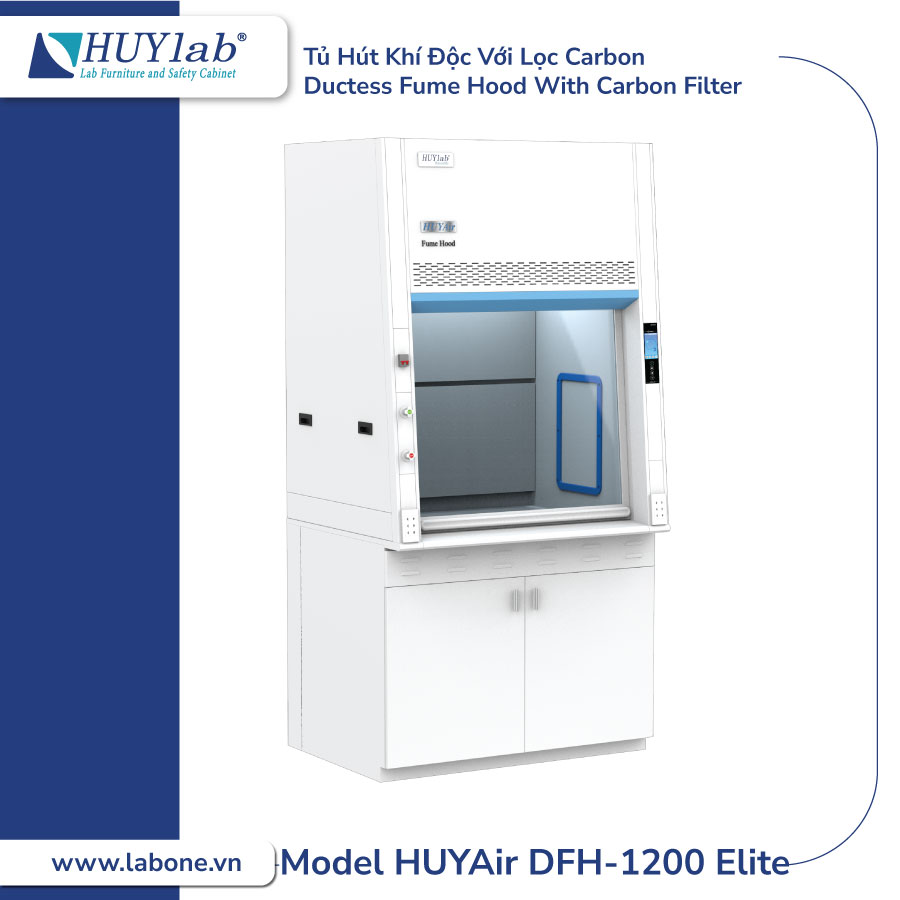

Model HUYAir DFH-1200 Elite | Ductless Fume Hood With Carbon Filter

FEATURES

Ductless Fume Hood with Carbon Filter – HUYAir DFH Elite is designed with a specialized carbon filtration system to protect users when working with hazardous chemicals and volatile solvents.
Structure: 2 layers with interior made of PP plastic; exterior made of electrogalvanized steel coating by powder resistant chemical, UV, and bacteria.
UV-resistant tempered glass door, sliding with counterweight.
EBMpapst motor from Germany ensures energy savings.
Work zone: ISO class 5
Modified Carbon filter for chemical vapor adsorption.
Integrated microprocessor controller with touch screen displays real wind speed, time settings, UV, door opening warning and wind speed according to settings, and can be adjusted directly on the screen about fan speed
The cabinet angle is 7° for easy operation
There are access ports for accessories such as valve of air, water, gas, and head for online particle counting samplers.

Model	HUYAir DFH – 1200 Elite
Controller	Microcessor with 8.88-inch screen
Inflow velocity	0,3 – 0,5 m/s
Light	>750 lux
Noise	<65 dB
Maximum sash opening height	710 mm
Motor	DC
External dimensions (W x D x H)	1200 x 945 x 1500 mm
Internal dimensions (W x D x H)	1000 x 695 x 1070 mm
External dimensions including cabinet legs (W x D x H)	1200 x 945 x 2400 mm
Cabinet weight	220 kg
Power	393W
Voltage – Frequenciens	200 – 240V, 50/60 Hz
Warranty	3 years

Support Stand	Support Stand with caster wheels \| Height 800mm for model HUYAir FH
	Support Stand with cabinets \| Height 800mm for model HUYAir Bio2-Eco
Power accessories	Power outlet
Vans accessories	Gas vans \| Gas (such as N2) \| Vacuum vans
	Water vans
Sink accessories	Mini sink
Phụ kiện lọc carbon GVS – Anh	1. GP – General organic compound removal (i.e solvents, odours, organic acids etc)
	2. CYN – Removal of compounds containing Cyanide (and general organics)
	3. AMM – Removal of compounds containing Ammonia & Amine (and general organics)
	4. FOR – Removal of Formaldehyde (and general organics)
	5. ACI – Removal of inorganic acids and general organics (including Sulphur compounds)
	6. ACR- Removal of Alkali compounds (and general organics)
	7. ETH – Removal of compounds containing Ether (and general organics)

HUYAir DFH Elite | Ductless Fume Hood With Carbon Filter is designed with a specialized carbon filtration system. It continuously draws contaminated air from the workspace. The dirty air is sucked through the rear wall of the workspace, pushed through the carbon filter, which absorbs all the contaminants, and then releases clean air into the external environment.
