FEATURES
- Ductless Fume Hood with Carbon Filter – HUYAir DFH Elite is designed with a specialized carbon filtration system to protect users when working with hazardous chemicals and volatile solvents.
- Structure: 2 layers with interior made of PP plastic; exterior made of electrogalvanized steel coating by powder resistant chemical, UV, and bacteria.
- UV-resistant tempered glass door, sliding with counterweight.
- EBMpapst motor from Germany ensures energy savings.
- Work zone: ISO class 5
- Modified Carbon filter for chemical vapor adsorption.
- Integrated microprocessor controller with touch screen displays real wind speed, time settings, UV, door opening warning and wind speed according to settings, and can be adjusted directly on the screen about fan speed
- The cabinet angle is 7° for easy operation
- There are access ports for accessories such as valve of air, water, gas, and head for online particle counting samplers.

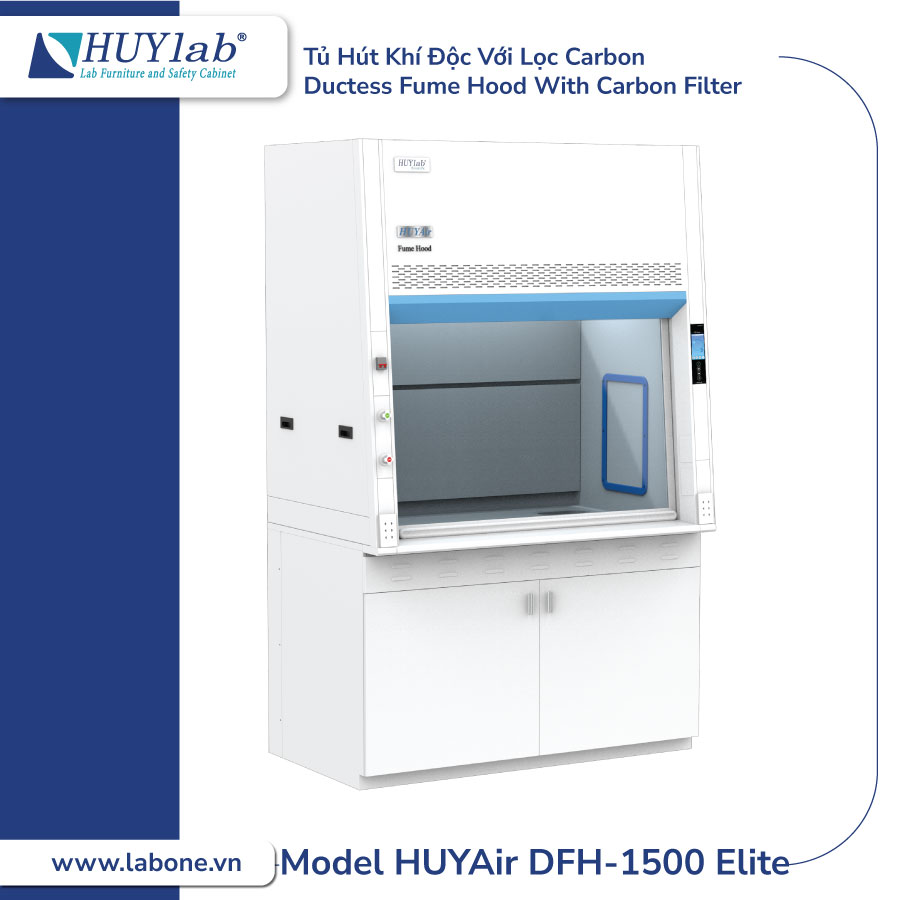

Model | HUYAir DFH – 1500 Elite |
Controller | Microcessor with 8.88-inch screen |
Inflow velocity | 0,5 m/s |
Light | >750 lux |
Noise | <65 dB |
Maximum sash opening height | 710 mm |
Motor | DC |
External dimensions (W x D x H) | 1500 x 945 x 1500 mm |
Internal dimensions (W x D x H) | 1300 x 695 x 1070 mm |
External dimensions including cabinet legs (W x D x H) | 1500 x 945 x 2400 mm |
Cabinet weight | 240 kg |
Power | 402W |
Voltage – Frequenciens | 200 – 240V, 50/60 Hz |
Warranty | 3 years |
Support Stand | Support Stand with caster wheels | Height 800mm for model HUYAir FH | |
Support Stand with cabinets | Height 800mm for model HUYAir Bio2-Eco | ||
Power accessories | Power outlet | |
Vans accessories | Gas vans | Gas (such as N2) | Vacuum vans | |
Water vans | ||
Sink accessories | Mini sink | |
Phụ kiện lọc carbon GVS – Anh | 1. GP – General organic compound removal (i.e solvents, odours, organic acids etc) | |
2. CYN – Removal of compounds containing Cyanide (and general organics) | ||
3. AMM – Removal of compounds containing Ammonia & Amine (and general organics) | ||
4. FOR – Removal of Formaldehyde (and general organics) | ||
5. ACI – Removal of inorganic acids and general organics (including Sulphur compounds) | ||
6. ACR- Removal of Alkali compounds (and general organics) | ||
7. ETH – Removal of compounds containing Ether (and general organics) |
![]() |
|
