FEATURES
- Ductless Fume Hood with Carbon Filter – HUYAir DFH Elite is designed with a specialized carbon filtration system to protect users when working with hazardous chemicals and volatile solvents.
- Structure: 2 layers with interior and exterior made of electrogalvanized steel coating by powder resistant chemical, UV, and bacteria.
- UV-resistant tempered glass door, sliding with counterweight.
- EBMpapst motor from Germany ensures energy savings.
- Modified Carbon filter for chemical vapor adsorption.
- Integrated microprocessor controller with touch screen displays real wind speed, time settings, UV, door opening warning and wind speed according to settings, and can be adjusted directly on the screen about fan speed
- The cabinet angle is 7° for easy operation
- There are access ports for accessories such as valve of air, water, gas, and head for online particle counting samplers.

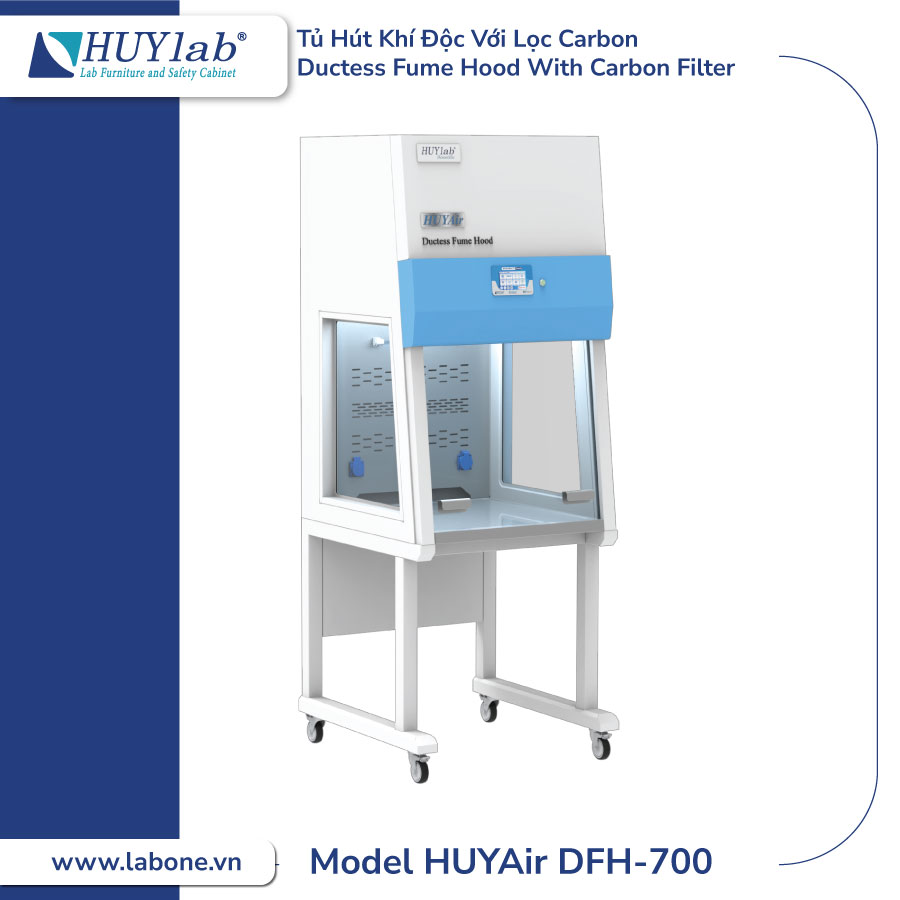

| Model | HUYAir DFH – 700 |
| Controller | Microcessor with 4.3-inch screen |
| Inflow velocity | 0,3 – 0,5 m/s |
| Light | >750 lux |
| Noise | <65 dB |
| Maximum sash opening height | 470 mm |
| Motor | DC |
| External dimensions (W x D x H) | 700 x 750 x 1200 mm |
| Internal dimensions (W x D x H) | 600 x 620 x 605 mm |
| External dimensions including cabinet legs (W x D x H) | 720 x 750 x 1920 mm |
| Cabinet weight | 100 kg |
| Voltage – Frequenciens | 200 – 240V, 50/60 Hz |
| Warranty | 3 years |
| Accessory | Description |
| Support Stand Accessory | Mobile frame type with wheels, designed to match the model. |
| Fixed cabinet type, designed to match the model. | |
| Power Supply Accessory | Power outlet |
| Valve Accessory | Gas / Air (N₂) / Vacuum valve |
| Water valve | |
| Water Accessory | Faucet |
| Mini sink |
 |
|
